雷达磁控管互换型号
Magnetron Cross Reference
To Be Replaced (E2V) |
NJRC Type |
2J42 |
MVS1425A |
9M302 |
MRF1421B |
9M31 |
9M31 |
9M40 |
9M40 |
9M502 |
MSF1422B |
9M602 |
MVF1425B |
9M61 |
MVS1425A |
9M612 |
MSF1425B |
9M62A |
MSS1422A |
9M65 |
9M502/E3526 |
9M72 |
9M72 |
9M752 |
9M752 or M1325L |
9M753 |
M1328L |
9M80 |
MVS1422B |
9M80A |
MVS1425A |
AMC-1 |
M1439 |
E3509 |
9M72 |
E3509L |
M1311L |
E3513 |
MRF1421B |
E3526 |
MSF1422B |
E3554 |
MG5353 |
E3561 |
MG5353 |
E3573 |
MAF1421B |
E3581 |
MAF1452B |
ET105 |
2J70B |
ET760 |
MVS1425A |
ET761 |
M1311L |
JP9-15 |
M1304 |
JP9-18 |
9M72 |
JP9-2.5D |
MRF1421C |
JP9-2.5E |
MRFB1421C |
JP9-2.5F |
MRF1421B |
JP9-7 |
MVS1425A |
JP9-7L |
M1310 |
M1305 |
MVF1425B |
M1308 |
MVS1425A |
M1311L |
M1311L |
M1315L |
MRF1421C |
M1325L |
M1325L |
M1328 |
M1328 |
M1350L |
MRFB1421C |
M1353L |
M1353L |
M1354L |
MRF1424C |
M1361 |
MSF1422B |
M1369 |
MSF1425B |
M1430 |
M1430 |
M1437 |
M1437 |
M1454 |
M1454 |
M1457 |
M1457 |
M1458 |
M1458 |
M1458A |
M1458A |
M1461 |
M1461 |
M1492 |
M1492 |
M1517 |
M1517N |
M1517N |
M1517N |
M1528 |
M1528 |
M4505E |
9M31 |
M4527E |
MSS1422A |
M5020 |
M1302L |
M5022 |
M1328 |
M5031 |
M1310 |
M5039 |
M1311L |
M503A |
MVS1425A |
M5043 |
M1353L |
M5044 |
MRF1424C |
M5063 |
2J70B |
M5065 |
MSS1422A |
M5108 |
MVS1425B |
M5115 |
MVS1422B |
M5131 |
9M72 |
M513B |
M1304 |
M515 |
M1325L |
M5174 |
MSF1425B |
M5187 |
M1325L |
M5187F |
M1517N |
M5196A |
MRF1421C |
M5196B |
MRFB1421C |
M5196F |
MRF1421B |
M5197 |
MRF1424C |
M5198 |
MRF1424B |
M5199 |
M1328 |
M526 |
MVS1425A |
M551 |
4J52A |
M597 |
MVF1425B |
M598B |
M1312 |
M599A |
MRF1421C |
M599B |
MRFB1421C |
M599F |
MRF1421B |
MAG3 |
MVS1425A |
MG5217 |
MSF1422B |
MG5218 |
M1568B |
MG5222 |
M1311L |

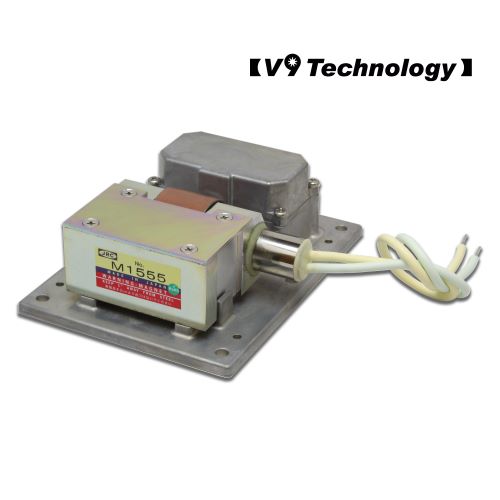

MG5223 |
M1555 |
MG5232 |
MSF1422B |
MG5233 |
MRF1424B |
MG5234 |
MRF1424C |
MG5238A |
MRF1421C |
MG5238B |
MRFB1421C |
MG5239 |
M1311L (w/special input cap) |
MG5241 |
MSF1425B |
MG5243 |
MSF1421C |
MG5244 |
MVS1425A |
MG5245 |
MSF1425A |
MG5248 |
MSF1421B |
MG5251 |
MRF1421B |
MG5255 |
MVS1422B |
MG5256 |
M1310 |
MG5257 |
MVF1425B |
MG5258 |
MVS1425B |
MG5259 |
MSS1422A |
MG5264 |
9M72 or M1454 |
MG5267 |
2J70B |
MG5273 |
MVF1422B |
MG5289 |
2J70A |
MG5353 |
MAF1452B |
MG5388 |
MAF1421B |
MG5388C |
MAF1421BN |
MG5424 |
M1568B |
MG5435 |
2J55 |
QKH1862 |
M1311L |
QKH1978 |
2J70B |
RMC-1 |
M1439 |
RMC-2 |
M1489 |
YJ1071 |
MVF1425B |
YJ1110 |
M1311L |
YJ1120 |
M1325L |
YJ1121 |
M1328 |
YJ1300 |
MRF1424B |
YJ1301 |
MRF1424C |
MG5437 |
M1568B |
MG4004 |
MAF1611B |
MG4006 |
MAF1562B |
MG4010 |
MAF1565N |
| Items | Parameters |
| Anode voltage (Peak) | 8 kV |
|---|---|
| Anode current (Peak) | 8 A |
| Heater voltage | 6.3 V |
| Heater current | 1.3 A |
| RF output interface | Waveguide : WR284 |
| Power supply interface | Lead wire |
| Cooling | Air / Forced air |
| Weight | 1.7 kg |
