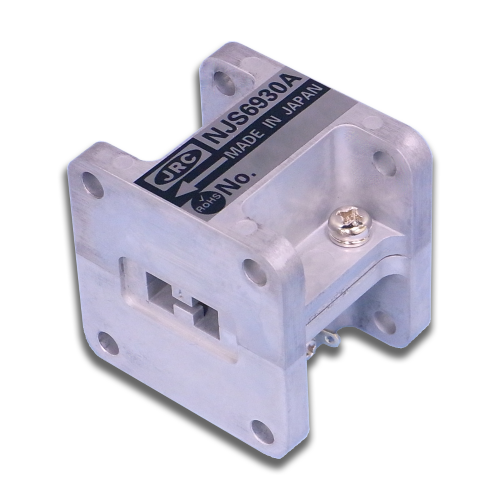

NJS6930

ItemsParametersFlat leakage power (@ 3 kW)150 mW max.Spike leakage power (@ 3 kW)600 mW max.Insertion loss1.5 dB max.RF interfaceWaveguide : WR90Flange : UG-135/U EquivalentLength35…
询价/Quote
描述DESCRIPTION 规格参数SPECIFICATION

Frequency

9300 ~ 9500 MHz


Input power (Peak)

30 kW


Recovery time

0.5 μsec max.


Other features

With external bias terminal
RoHS compliant

Items Parameters
Flat leakage power (@ 3 kW) 150 mW max.
Spike leakage power (@ 3 kW) 600 mW max.
Insertion loss 1.5 dB max.
RF interface Waveguide : WR90
Flange : UG-135/U Equivalent
Length 35 mm
Weight 0.19 kg
