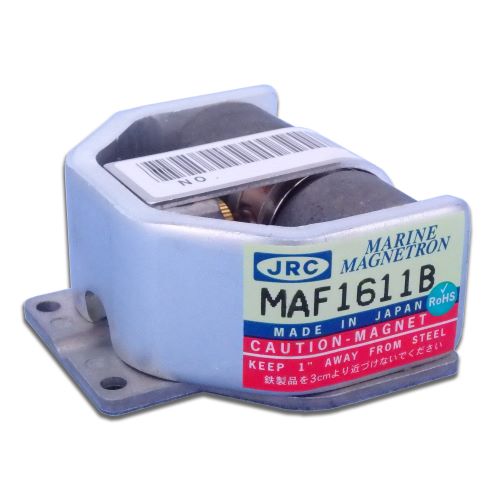

MAF1611B

ItemsParametersAnode voltage (Peak)3.6 kVAnode current (Peak)3 AHeater voltage6.3 VHeater current0.55 ARF output interfaceWaveguide : WR90RF flange : UG-135/U EquivalentPower supply…
询价/Quote
描述DESCRIPTION 规格参数SPECIFICATION
Frequency
9380 ~ 9440 MHz (Fixed)
Output power (Peak)
4 kW
Duty cycle / Pulse duration
0.001 / 1.25 μsec
Other features
RoHS compliant

Items Parameters
Anode voltage (Peak) 3.6 kV
Anode current (Peak) 3 A
Heater voltage 6.3 V
Heater current 0.55 A
RF output interface Waveguide : WR90
RF flange : UG-135/U Equivalent
Power supply interface Lead wire
Cooling Air / Forced air
Weight 0.4 kg
