Frequency
9380 ~ 9440 MHz (Fixed)
Output power (Peak)
6 kW
Duty cycle / Pulse duration
0.001 / 1.25 μsec
Other features
RoHS compliant
ESAC : Extended Surface Area Cathode

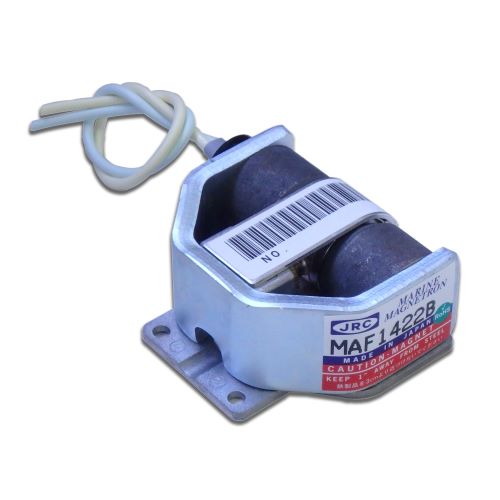

Electrical specifications of MSF types are as same as one of identical number of MAF types. MAF type magnetrons will be recommended for new radar design.
|
Items
|
Parameters
|
|
Anode voltage (Peak)
|
4.5 kV
|
|
Anode current (Peak)
|
4.5 A
|
|
Heater voltage
|
6.3 V
|
|
Heater current
|
0.55 A
|
|
RF output interface
|
Waveguide : WR90
RF flange : UG-135/U Equivalent
|
|
Power supply interface
|
Lead wire
|
|
Cooling
|
Air / Forced air
|
|
Weight
|
0.4 kg
|
