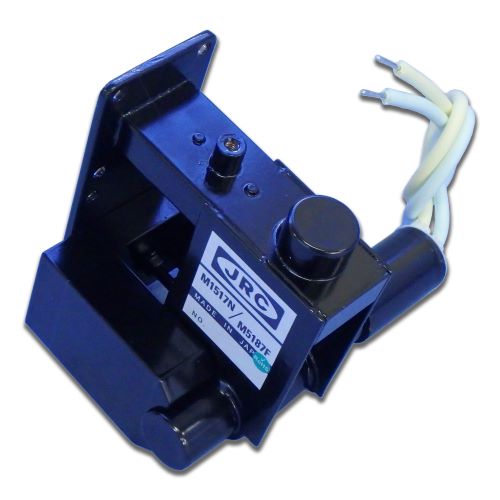

M1517N/M5187F

ItemsParametersAnode voltage (Peak)8 kVAnode current (Peak)8 AHeater voltage6.3 V (@ Preheat)Heater current0.52 ARF output interfaceWaveguide : WR90RF flange : UG-135/U EquivalentPo…
询价/Quote
描述DESCRIPTION 规格参数SPECIFICATION

Frequency
9380 ~ 9440 MHz (Fixed)
Output power (Peak)
25 kW
Duty cycle / Pulse duration
0.001 / 1.00 μsec
Other features
RoHS compliant
Items Parameters
Anode voltage (Peak) 8 kV
Anode current (Peak) 8 A
Heater voltage 6.3 V (@ Preheat)
Heater current 0.52 A
RF output interface Waveguide : WR90
RF flange : UG-135/U Equivalent
Power supply interface Lead wire
Cooling Air / Forced air
Weight 1.4 kg
