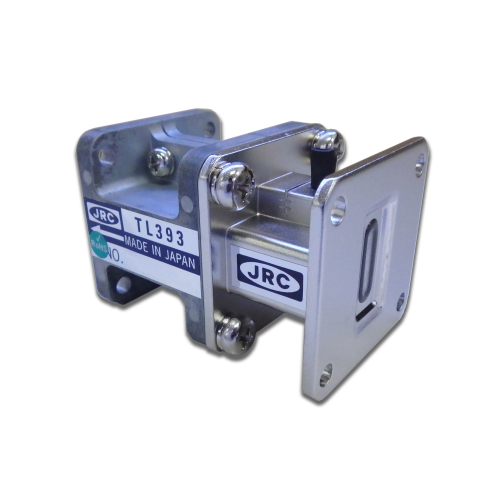

X-band TR Limiters
TL393

ItemsParametersFlat leakage power25 mW max.Spike leakage power / energy400 mW max.Insertion loss2.0 dB max.Max Pulse duration1.2 μsecRF interfaceWaveguide : WR90RF flange : UG-135/…
询价/Quote
描述DESCRIPTION 规格参数SPECIFICATION
Frequency
9300 ~ 9500 MHz
Input power (Peak)
100 kW
Recovery time
2 μsec max.
Other features
Radioisotope less
RoHS compliant
Items Parameters
Flat leakage power 25 mW max.
Spike leakage power / energy 400 mW max.
Insertion loss 2.0 dB max.
Max Pulse duration 1.2 μsec
RF interface Waveguide : WR90
RF flange : UG-135/U Equivalent
Weight 0.28 kg
