S-band Diode Limiters

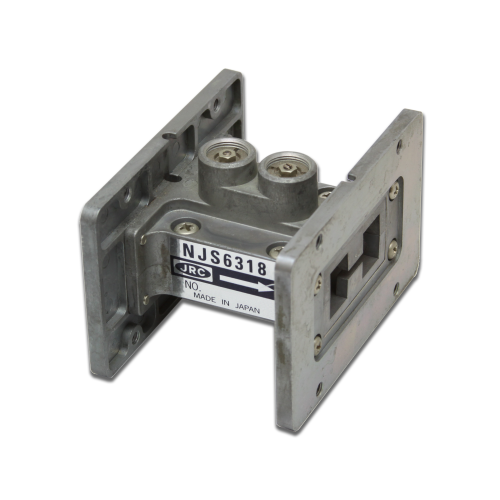

NJS6318

ItemsParametersFlat leakage power (@ 4 kW)150 mW max.Spike leakage power (@ 4 kW)600 mW max.Insertion loss1.2 dB max.RF interfaceWaveguide : WR284Length74 mmWeight0.36 kgDownload Fi…
询价/Quote
描述DESCRIPTION 规格参数SPECIFICATION
Frequency
3000 ~ 3100 MHz
Input power (Peak)
30 kW
Recovery time
0.5 μsec max.
Other features
RoHS compliant
Items Parameters
Flat leakage power (@ 4 kW) 150 mW max.
Spike leakage power (@ 4 kW) 600 mW max.
Insertion loss 1.2 dB max.
RF interface Waveguide : WR284
Length 74 mm
Weight 0.36 kg

Download File
