DESCRIPTION
Type
DATA SHEET
PDF
Frequency
(MHz)
Peak
Power Output
(kW typ.)
Pulse Width
(µsec)
Duty Ratio
Anode
Voltage
(kV)
Peak Anode
Current
(A)
Heater
Voltage
(V)
Heater
Current
(A)
Structure
Weight
(kg)
M1302/M5020
36KB
3040-3060
25
1
0.001
8
8
6.3
(Note.1)
1.25
FWAPL
2.3
M1302L
78KB
3040-3060
25
1
0.001
8
8
6.3
(Note.1)
1.25
FWAPL
2.3
M1302A
36KB
3040-3060
30
1
0.001
8
8
6.3
(Note.1)
1.25
FWAPL
2.3
M1623
3040-3060
30
1
0.001
8
8
6.3
(Note.1)
1.25
FWAPL
1.7
2J70B
28KB
3025-3075
50
1
0.001
9
16
6.3
(Note.1)
1.25
FCAPS
1.7
M1461
3025-3075
50
1
0.00075
9
16
6.3
(Note.1)
1.25
FWAPL
2.5
SPECIFICATION
Marine Magnetrons [X-Band]
Type
DATA SHEET
PDF
Frequency
(MHz)
Peak
Power Output
(kW typ.)
Pulse Width
(µsec)
Duty Ratio
Anode
Voltage
(kV)
Peak Anode
Current
(A)
Heater
Voltage
(V)
Heater
Current
(A)
Structure
Weight
(kg)
M1311L
22KB
9345-9405
25
1
0.001
8
8
6.3
(Note.1)
0.52
FWAPS
1.6
9M72
9380-9440
25
1
0.001
8
8
6.3
(Note.1)
0.52
FWAPS
1.5
9M72/M1454
9380-9440
25
1
0.001
8
8
6.3
(Note.1)
0.52
FWAPS
1.4
M1437(A)
23KB
9380-9440
25
1
0.001
8
8
6.3
(Note.1)
0.52
FWAPS
1.5
M1455
9710-9770
25
1
0.001
8
8
6.3
(Note.1)
0.52
FWAPS
1.5
M1458
9380-9440
25
1
0.001
8
8
6.3
(Note.1)
0.52
FWAPL
1.4
M1458A
9380-9440
25
1
0.001
8
8
6.3
(Note.1)
0.52
FWAPL
0.7
M1636
9380-9440
25
1
0.001
8
8
6.3
(Note.1)
0.52
FWAPL
0.7
M1475A
9345-9405
25
1
0.001
8
8
6.3
(Note.1)
0.52
FWAPL
0.7

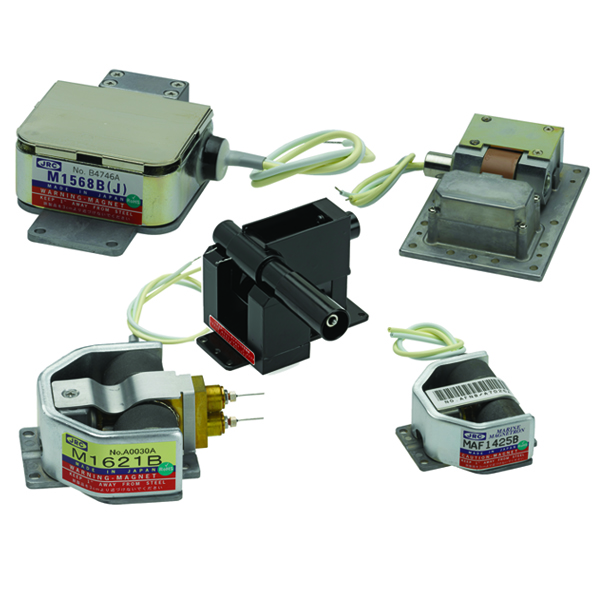

M1568B(J)
9380-9440
25
1
0.001
8
8
6.3
(Note.1)
0.52
FWAPL
0.7
M1569
9710-9770
25
1
0.001
8
8
6.3
(Note.1)
0.52
FWAPL
0.7
M1325L/M5187
9380-9440
25
1
0.001
8
8
6.3
(Note.1)
0.55
FWAPL
1.5
M1517N/M5187F
9380-9440
25
1
0.001
8
8
6.3
(Note.1)
0.52
FWAPL
1.4
2J55
81KB
9345-9405
50
1
0.001
12
12
6.3
(Note.1)
1
FWAPS
1.9
9M31
25KB
9380-9440
50
1
0.001
12
12
6.3
(Note.1)
1
FWAPS
1.9
M1337
9725-9755
50
1
0.001
12
12
6.3
(Note.1)
1
FWAPS
1.9
(Note.1)Pre-heat Voltage. Heater Voltage must be reduced accoring to the formula described on the data sheet.
