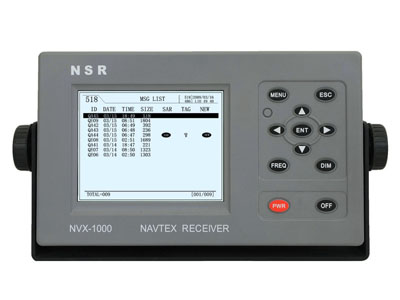

NSR NVX-1000
航警接收仪
NVX-1000
NVX-1000
cost-effective and stablilize products
询价/Quote
描述DESCRIPTION 规格参数SPECIFICATION
                  -      5.7” Silver Bright LCD.
                  -      Supports all IMO NAVTEX frequencies (518kHz, 490kHz and 4209.5kHz).
                  -      Displays the message contents.
                  -      Messages stored for 72 hours.
                  -      Simple to operate.
                  -      Desktop or flush mount.
                  -      External printer interface and External alarm output.
                  -      Low power consumption.
                  -      Conforms to the latest rules including IMO M148 (77) and IEC 61097-6.
                  -      CCS type approval.
                  -      DNV-GL type approval.

                  -      VR type approval.





 NAVTEX Receiver
 Receiving Frequency:   518kHz, 490kHz and 4209.5kHz
 Mode of Reception:    F1B
 Sensitivity:   2μV e.m.f. (50Ω), 4% error rate or less
 Display
 Display System:   5.7”, 103 (W) mm × 79 (H) mm, 320×240 dots
 Display Modes:  Message List, Main Menu
 Messages Storage:  200 messages × 3 channels
 Power Supply  24V DC (10～38V)
 Environment Conditions
 Temperature Range:

 -15℃ ~ +55℃ operational (IEC 60945)
 -25℃ ~ +70℃ storage

 IP Grade:  IP22 (Receiver), IP66 (Antenna & Amplifier)
 Printer Interface   RS-232
 Dimension & Weight
 Weight:  2.0 kg (Receiver only)
 Dimension:   264(W) × 145(H) × 80(D)  mm  (main unit)
