- Storage for up to 999 waypoints and 30 routes.
- 7 inch, color LCD, touch screen operation with adjustable contrast and brilliance.
- Dedicate port for INS connection.
- 2 GPS data outputs.
- A DGPS beacon receiver (external) may be connected to the NGR-3000 to add DGPS function.
- Meets the requirements of relative IMO and IEC regulation & standards, including IMO MSC112 (73),
IEC61108-1, etc.
- DNV-GL type approval.
- VR type approval.
- CCS type approval.

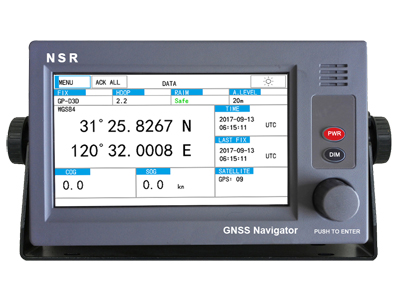

| Model | NGR-3000 / NGR-1000 |
| GPS RECEIVER | |
| Receiving System: | GPS, Beidou, Glonass |
| Rx Frequency: | 1575.42 MHz |
| Rx Code: | C/A code |
| Position Accuracy: |
≤10m (GPS), ≤5m (DGPS), 95% of the time, |
| Tracking Velocity: | 999 kts |
| Position-fixing Time: | Cold start: 120 seconds |
| Position Update Interval: | 1 second |
| DISPLAY SECTION | |
| Display: | 7 inch, color LCD, touch screen operation |
| Fix Mode: | GPS / GLONASS / Beidou |
| Alerts: | Lost of Position, HDOP﹥4, DGPS lost |
| INPUT/OUTPUT DATA | |
| Output Data: |
NMEA0183, totally 3 ports,, |
| Sentences: | ALF, DTM, GBS, GNS, GGA, GSA, RMC, VTG, ZDA, etc. |
| INS connection: | INS IN / INS OUT, RS422 |
|
Input Data: |
DGPS RTCM SC-104 |
| Power Supply | 24 VDC, 0.25-0.50 A |
| ENVIRONMENT CONDITION | |
| Ambient Temperature: |
|
| Relative Humidity: | 95% at 40°C |
| IP Grade: |
Antenna Unit: IP66 |
| Size | 145(H) x 264(W) x 80(D) mm |
| Weight | 1.25kg (main unit) |
