| Type |
DATA SHEET |
Frequency (MHz) |
Peak Power Output (kW typ.) |
Pulse Width (µsec) |
Duty Ratio |
Anode Voltage (kV) |
Peak Anode Current (A) |
Heater Voltage (V) |
Heater Current (A) |
Structure |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M1302/M5020 | 36KB | 3040-3060 | 25 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
1.25 | FWAPL | 2.3 |
| M1302L | 78KB | 3040-3060 | 25 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
1.25 | FWAPL | 2.3 |
| M1302A | 36KB | 3040-3060 | 30 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
1.25 | FWAPL | 2.3 |
| M1623 | 3040-3060 | 30 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
1.25 | FWAPL | 1.7 | |
| 2J70B | 28KB | 3025-3075 | 50 | 1 | 0.001 | 9 | 16 |
6.3 (Note.1) |
1.25 | FCAPS | 1.7 |
| M1461 | 3025-3075 | 50 | 1 | 0.00075 | 9 | 16 |
6.3 (Note.1) |
1.25 | FWAPL | 2.5 |
| Type |
DATA SHEET |
Frequency (MHz) |
Peak Power Output (kW typ.) |
Pulse Width (µsec) |
Duty Ratio |
Anode Voltage (kV) |
Peak Anode Current (A) |
Heater Voltage (V) |
Heater Current (A) |
Structure |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M1311L | 22KB | 9345-9405 | 25 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
0.52 | FWAPS | 1.6 |
| 9M72 | 9380-9440 | 25 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
0.52 | FWAPS | 1.5 | |
| 9M72/M1454 | 9380-9440 | 25 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
0.52 | FWAPS | 1.4 | |
| M1437(A) | 23KB | 9380-9440 | 25 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
0.52 | FWAPS | 1.5 |
| M1455 | 9710-9770 | 25 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
0.52 | FWAPS | 1.5 | |
| M1458 | 9380-9440 | 25 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
0.52 | FWAPL | 1.4 | |
| M1458A | 9380-9440 | 25 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
0.52 | FWAPL | 0.7 | |
| M1636 | 9380-9440 | 25 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
0.52 | FWAPL | 0.7 | |
| M1475A | 9345-9405 | 25 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
0.52 | FWAPL | 0.7 | |

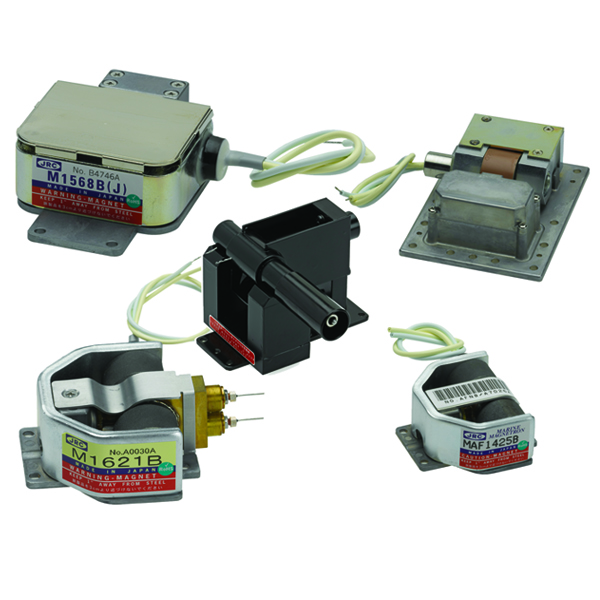

| M1568B(J) | 9380-9440 | 25 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
0.52 | FWAPL | 0.7 | |
| M1569 | 9710-9770 | 25 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
0.52 | FWAPL | 0.7 | |
| M1325L/M5187 | 9380-9440 | 25 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
0.55 | FWAPL | 1.5 | |
| M1517N/M5187F | 9380-9440 | 25 | 1 | 0.001 | 8 | 8 |
6.3 (Note.1) |
0.52 | FWAPL | 1.4 | |
| 2J55 | 81KB | 9345-9405 | 50 | 1 | 0.001 | 12 | 12 |
6.3 (Note.1) |
1 | FWAPS | 1.9 |
| 9M31 | 25KB | 9380-9440 | 50 | 1 | 0.001 | 12 | 12 |
6.3 (Note.1) |
1 | FWAPS | 1.9 |
| M1337 | 9725-9755 | 50 | 1 | 0.001 | 12 | 12 |
6.3 (Note.1) |
1 | FWAPS | 1.9 | |
| (Note.1)Pre-heat Voltage. Heater Voltage must be reduced accoring to the formula described on the data sheet. | |||||||||||
